### Showdown Extension for MathJax
***This extension was inspired by https://github.com/easyhappy/math-extension.***
---
#### Install
```bash
npm i showdown-mathjax
```
```bash
pnpm i showdown-mathjax
```
```bash
yarn add showdown-mathjax
```
---
#### About
- [Showdown](https://showdownjs.com/) : A Markdown to HTML bidirectional converter written in Javascript!
- [MathJax](https://www.mathjax.org/) : A JavaScript display engine for mathematics that works in all browsers.
- Showdown-mathjax is showdown extension for MathJax , `TeX / LaTeX` and `MathML` are supported.
##### TeX / LaTeX
- Supported TeX / LaTeX commands from MathJax website can see here : https://docs.mathjax.org/en/latest/input/tex/macros/index.html
- TeX commands available in MathJax by [Dr. Carol JVF Burns](https://www.onemathematicalcat.org/carol_vita_web.htm) , can see here : https://www.onemathematicalcat.org/MathJaxDocumentation/TeXSyntax.htm
##### MathML
- Mathematical Markup Language (MathML) Version 3.0 2nd Edition : https://www.w3.org/TR/MathML/
- Creating equations with MathML : https://www.drillster.com/info/mathml/
- Convert tools for MathML can find here : https://www.mathmlcentral.com/Tools/ToMathML.jsp
---
#### Documentations
***The documentation is being developed and will be available soon.***
---
#### Example Usage
`index.js`
```javascript
import fs from "fs";
import Showdown from "showdown";
import showdownMathjax from "showdown-mathjax";
const converter = new Showdown.Converter({
// others showdown options
extensions: [showdownMathjax, /*others showdown extensions*/],
});
const content = fs.readFileSync("./example.md", "utf-8");
const converted = converter.makeHtml(content);
const html = `
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Showdown-MathJax</title>
</head>
<body>
${converted}
</body>
</html>
`;
fs.writeFileSync("index.html", html);
```
`example.md`
```markdown
### TeX
$$
\begin{eqnarray}
\bf {a+2+\alpha+\frac{x+3}{\beta+4}}
\newline \color{red}{ \frac{1+\sqrt{5}}{2} }
\end{eqnarray}
$$
<br>
$$
\sqrt{\frac ab}
\sqrt{\phantom{\frac ab}}
$$
<br>
$$ \overbrace{x + \cdots + x}^{n\rm\ times}_{\text{(note here)}} $$
<br>
$$
(x+1)^2
= (x+1)(x+1)
= x^2 + 2x + 1
$$
<br>
### MathML
<math xmlns="http://www.w3.org/1998/Math/MathML">
<msup>
<mrow>
<mfenced separators="|">
<mrow>
<mi>x</mi>
<mo>+</mo>
<mi>a</mi>
</mrow>
</mfenced>
</mrow>
<mrow>
<mi>n</mi>
</mrow>
</msup>
<mo>=</mo>
<mrow>
<msubsup>
<mo stretchy="true">∑</mo>
<mrow>
<mi>k</mi>
<mo>=</mo>
<mn>0</mn>
</mrow>
<mrow>
<mi>n</mi>
</mrow>
</msubsup>
<mrow>
<mfenced separators="|">
<mrow>
<mfrac linethickness="0pt">
<mrow>
<mi>n</mi>
</mrow>
<mrow>
<mi>k</mi>
</mrow>
</mfrac>
</mrow>
</mfenced>
<msup>
<mrow>
<mi>x</mi>
</mrow>
<mrow>
<mi>k</mi>
</mrow>
</msup>
<msup>
<mrow>
<mi>a</mi>
</mrow>
<mrow>
<mi>n</mi>
<mo>-</mo>
<mi>k</mi>
</mrow>
</msup>
</mrow>
</mrow>
</math>
<br>
<br>
<math xmlns="http://www.w3.org/1998/Math/MathML">
<msub>
<mi>CH</mi>
<mn>4</mn>
</msub>
<mo>+</mo>
<mn>2</mn>
<msub>
<mi>O</mi>
<mn>2</mn>
</msub>
<mo>→</mo>
<msub>
<mi>CO</mi>
<mn>2</mn>
</msub>
<mo>+</mo>
<mn>2</mn>
<msub>
<mi>H</mi>
<mn>2</mn>
</msub>
<mi>O</mi>
</math>
<br><br>
<math xmlns="http://www.w3.org/1998/Math/MathML">
<mrow>
<mi>x</mi>
<mo>=</mo>
<mfrac>
<mrow>
<mo form="prefix">−<!-- minus sign --></mo>
<mi>b</mi>
<mo>±<!-- ± --></mo>
<msqrt>
<msup>
<mi>b</mi>
<mn>2</mn>
</msup>
<mo>−<!-- minus sign --></mo>
<mn>4</mn>
<mo><!-- --></mo>
<mi>a</mi>
<mo><!-- --></mo>
<mi>c</mi>
</msqrt>
</mrow>
<mrow>
<mn>2</mn>
<mo><!-- --></mo>
<mi>a</mi>
</mrow>
</mfrac>
</mrow>
</math>
```
```bash
node ./index.js
```
<br>

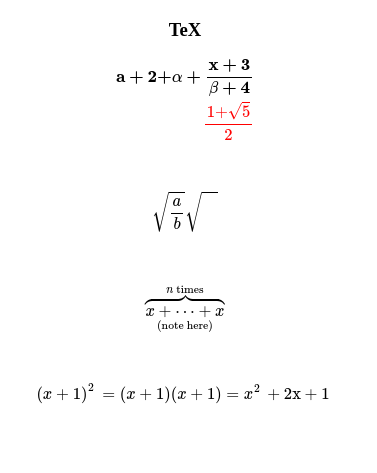

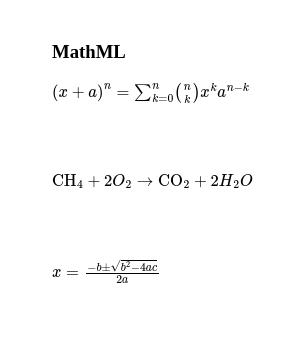

#### Output
<br>
---
