# react-native-gnss-status-checker
<div align="center">
[](https://www.npmjs.com/package/react-native-gnss-status-checker)
[](https://www.npmjs.com/package/react-native-gnss-status-checker)
[](https://github.com/vijayanandof/react-native-gnss-status-checker/blob/main/LICENSE)
</div>
A React Native module to check GNSS status and satellite information on Android, including NavIC and dual-frequency GPS support.
## 🎬 Demo
<div align="center">

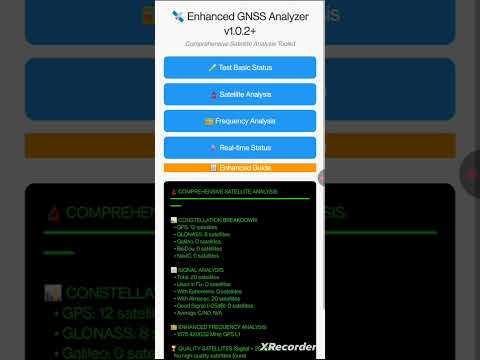

[](https://youtube.com/shorts/4Tt8_cUEmNY?si=MsYwZAyRC4PwHmAk)
*Click to watch: Real-time GNSS satellite tracking and dual-frequency detection*
[🎥 Watch Demo on YouTube](https://youtube.com/shorts/4Tt8_cUEmNY?si=MsYwZAyRC4PwHmAk)
</div>
## 📱 Complete Sample Application
<div align="center">
### 🚀 [GnssTestApp - Full Implementation Example](https://github.com/vijayanandof/GnssTestApp)
[](https://github.com/vijayanandof/GnssTestApp)
[](https://github.com/vijayanandof/GnssTestApp)
[](https://github.com/vijayanandof/GnssTestApp)
</div>
### 🌟 What's Inside the Sample App
| Testing Mode | Features | Highlights |
|--------------|----------|------------|
| 🧪 **Basic Status** | GNSS capability check | API compatibility, constellation support |
| 🔬 **Satellite Analysis** | 15+ helper functions | Per-constellation breakdown, signal quality |
| 📻 **Frequency Analysis** | Research-based mapping | Sean Barbeau's frequency detection |
| 📡 **Real-time Status** | Live monitoring | React hooks, event-driven updates |
### 🎯 Key Implementations Showcased
- ✅ **Complete React Hook Integration** - `useGnssStatus` pattern
- ✅ **All Helper Functions** - Filtering, statistics, analysis
- ✅ **Real-time Event Handling** - `DeviceEventEmitter` usage
- ✅ **TypeScript Best Practices** - Full type safety
- ✅ **4 Testing Modes** - Basic to advanced analysis
- ✅ **Modern UI/UX** - Professional React Native interface
```bash
# Clone and run the complete sample
git clone https://github.com/vijayanandof/GnssTestApp.git
cd GnssTestApp
npm install
npx react-native run-android
```
> 💡 **Perfect Starting Point**: Use this as your base implementation or reference for integrating GNSS features into your own app!
## 🛰️ Supported Constellations
| Constellation | Primary Freq | Dual-Freq Support | Regional Coverage |
|---------------|--------------|-------------------|-------------------|
| 🇺🇸 GPS | L1 (1575.42 MHz) | L2, L5 | Global |
| 🇷🇺 GLONASS | L1 (1602 MHz) | L2 | Global |
| 🇪🇺 Galileo | E1 (1575.42 MHz) | E5a, E5b | Global |
| 🇨🇳 BeiDou | B1 (1561.098 MHz) | B2a, B3 | Global |
| 🇮🇳 NavIC (IRNSS) | L5 (1176.45 MHz) | S-band | India & Region |
| 🇯🇵 QZSS | L1 (1575.42 MHz) | L2, L5 | Asia-Pacific |
## 📋 Table of Contents
- [🎬 Demo](#-demo)
- [📱 Complete Sample Application](#-complete-sample-application)
- [🛰️ Supported Constellations](#️-supported-constellations)
- [🌟 Features](#-features)
- [💖 Support the Project](#-support-the-project)
- [📱 Requirements](#-requirements)
- [🚀 Installation](#-installation)
- [💻 Usage](#-usage)
- [📖 API Reference](#-api-reference)
- [🔧 Troubleshooting](#-troubleshooting)
- [🌐 Community](#-community)
- [🤝 Contributing](#-contributing)
- [📄 License](#-license)
## 🌟 Features
- ✅ **GNSS Support Detection**: Check if GNSS is supported and enabled
- ✅ **Dual-Frequency GPS**: Detect L5 band support (~1176 MHz)
- ✅ **NavIC Support**: Detect Indian Regional Navigation Satellite System (IRNSS)
- ✅ **Satellite Monitoring**: Real-time satellite visibility tracking
- ✅ **Detailed Satellite Information**: Individual satellite data including PRN, signal strength, elevation, azimuth
- ✅ **Multiple Constellations**: Support for GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
- ✅ **Enhanced Frequency Detection**: Comprehensive carrier frequency mapping based on research
- ✅ **Dual-Frequency Detection**: Advanced detection for all GNSS constellations (L2, L5, E5a, E5b, B2a, etc.)
- ✅ **Frequency Band Identification**: Identify specific frequency bands for each detected carrier
- ✅ **Satellite Analytics**: Helper functions for filtering and analyzing satellite data
- ✅ **TypeScript Support**: Full TypeScript definitions included
## 💖 Support the Project
If this library has been helpful to you, consider supporting its development:
[](https://www.buymeacoffee.com/vijayanand)
[](https://github.com/vijayanandof/react-native-gnss-status-checker)
⭐ **Star this repo** if you find it useful!
☕️ **Buy me a coffee** to support development!
Your support helps maintain and improve this open-source project!
## 📱 Requirements
- React Native 0.60+
- Android API Level 24+ (Android 7.0) for full GNSS features
- API 21+ (Android 5.0) for basic satellite count and constellation support
- API 24+ (Android 7.0) for signal strength, elevation, and azimuth data
- API 26+ (Android 8.0) for carrier frequency detection
- Android device with GNSS support
- Location permissions
### API Level Compatibility
The library gracefully handles different Android API levels:
| Feature | Minimum API Level | Android Version |
|---------|------------------|-----------------|
| Basic satellite count | 21 | Android 5.0 |
| Constellation detection | 21 | Android 5.0 |
| Signal strength (C/N0) | 24 | Android 7.0 |
| Elevation/Azimuth angles | 24 | Android 7.0 |
| Carrier frequency detection | 26 | Android 8.0 |
| GNSS measurements | 24 | Android 7.0 |
You can check feature availability at runtime:
```typescript
import { getGNSSStatus } from 'react-native-gnss-status-checker';
const status = await getGNSSStatus();
// Check available features based on your device's Android version
console.log('API Level:', status.apiLevel);
console.log('Supports C/N0:', status.supportsCn0);
console.log('Supports Carrier Freq:', status.supportsCarrierFreq);
```
## 🚀 Installation
```bash
npm install react-native-gnss-status-checker
```
or
```bash
yarn add react-native-gnss-status-checker
```
### Android Setup
1. **Permissions**: Add the following permissions to your `android/app/src/main/AndroidManifest.xml`:
```xml
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
<!-- Optional: for background location access -->
<uses-permission android:name="android.permission.ACCESS_BACKGROUND_LOCATION" />
```
2. **Auto-linking**: For React Native 0.60+, the module should auto-link. If you encounter issues, try:
```bash
npx react-native unlink react-native-gnss-status-checker
npx react-native link react-native-gnss-status-checker
```
3. **Manual Linking** (if auto-linking fails):
- Add to `android/settings.gradle`:
```gradle
include ':react-native-gnss-status-checker'
project(':react-native-gnss-status-checker').projectDir = new File(rootProject.projectDir, '../node_modules/react-native-gnss-status-checker/android')
```
- Add to `android/app/build.gradle`:
```gradle
dependencies {
implementation project(':react-native-gnss-status-checker')
}
```
- Add to `MainApplication.java`:
```java
import com.gnssstatus.GnssStatusCheckerPackage;
@Override
protected List<ReactPackage> getPackages() {
return Arrays.<ReactPackage>asList(
new MainReactPackage(),
new GnssStatusCheckerPackage() // Add this line
);
}
```
## 💻 Usage
### Basic Usage
```typescript
import GnssStatusChecker, {
getGNSSStatus,
startListening,
stopListening,
GnssStatusResult,
GnssConstellations,
CarrierFrequencies
} from 'react-native-gnss-status-checker';
// Check current GNSS status
const checkGnssStatus = async () => {
try {
const status: GnssStatusResult = await getGNSSStatus();
console.log('GNSS Status:', status);
// Example output:
// {
// isGNSSSupported: true,
// isDualFrequencySupported: true,
// isNavICSupported: false,
// satellitesVisible: 12,
// satellitesUsedInFix: 8,
// averageSignalToNoiseRatio: 28.5,
// supportedConstellations: ['GPS', 'GLONASS', 'GALILEO'],
// carrierFrequencies: [1575.42, 1176.45],
// satellites: [/* detailed satellite info */]
// }
} catch (error) {
console.error('Error getting GNSS status:', error);
}
};
```
### Real-time Monitoring
```typescript
import { DeviceEventEmitter } from 'react-native';
const startGnssMonitoring = async () => {
try {
// Start listening for GNSS updates
await startListening();
// Listen for satellite status changes
const satelliteListener = DeviceEventEmitter.addListener(
'onSatelliteStatusChanged',
(data) => {
console.log('Satellites visible:', data.satellitesVisible);
console.log('Supported constellations:', data.supportedConstellations);
console.log('NavIC supported:', data.isNavICSupported);
}
);
// Listen for measurements changes (dual-frequency detection)
const measurementListener = DeviceEventEmitter.addListener(
'onMeasurementsChanged',
(data) => {
console.log('Carrier frequencies:', data.carrierFrequencies);
console.log('Dual-frequency supported:', data.isDualFrequencySupported);
}
);
// Clean up listeners when done
return () => {
satelliteListener.remove();
measurementListener.remove();
stopListening();
};
} catch (error) {
console.error('Error starting GNSS monitoring:', error);
}
};
```
### React Hook Example
```typescript
import React, { useState, useEffect } from 'react';
import { DeviceEventEmitter } from 'react-native';
import { getGNSSStatus, startListening, stopListening, GnssStatusResult } from 'react-native-gnss-status-checker';
const useGnssStatus = () => {
const [status, setStatus] = useState<GnssStatusResult | null>(null);
const [isListening, setIsListening] = useState(false);
useEffect(() => {
// Get initial status
getGNSSStatus().then(setStatus).catch(console.error);
// Start real-time monitoring
const startMonitoring = async () => {
try {
await startListening();
setIsListening(true);
} catch (error) {
console.error('Failed to start GNSS monitoring:', error);
}
};
startMonitoring();
// Listen for updates
const satelliteListener = DeviceEventEmitter.addListener(
'onSatelliteStatusChanged',
(data) => {
setStatus(prev => prev ? { ...prev, ...data } : null);
}
);
const measurementListener = DeviceEventEmitter.addListener(
'onMeasurementsChanged',
(data) => {
setStatus(prev => prev ? { ...prev, ...data } : null);
}
);
// Cleanup
return () => {
satelliteListener.remove();
measurementListener.remove();
stopListening().finally(() => setIsListening(false));
};
}, []);
return { status, isListening };
};
// Usage in component
const GnssStatusComponent = () => {
const { status, isListening } = useGnssStatus();
if (!status) return <Text>Loading GNSS status...</Text>;
return (
<View>
<Text>GNSS Supported: {status.isGNSSSupported ? 'Yes' : 'No'}</Text>
<Text>Dual-Frequency: {status.isDualFrequencySupported ? 'Yes' : 'No'}</Text>
<Text>NavIC Supported: {status.isNavICSupported ? 'Yes' : 'No'}</Text>
<Text>Satellites Visible: {status.satellitesVisible}</Text>
<Text>Monitoring: {isListening ? 'Active' : 'Inactive'}</Text>
</View>
);
};
```
### Enhanced Satellite Information
```typescript
import {
getSatellitesByConstellation,
getSatellitesUsedInFix,
getSatellitesWithGoodSignal,
getSatelliteStatistics,
GnssConstellations,
SatelliteInfo
} from 'react-native-gnss-status-checker';
const analyzeSatellites = async () => {
try {
const status = await getGNSSStatus();
// Get detailed satellite information
console.log('All satellites:', status.satellites);
// Filter satellites by constellation
const gpsSatellites = getSatellitesByConstellation(status.satellites, GnssConstellations.GPS);
const glonassSatellites = getSatellitesByConstellation(status.satellites, GnssConstellations.GLONASS);
// Get satellites used in position fix
const fixSatellites = getSatellitesUsedInFix(status.satellites);
console.log('Satellites used in fix:', fixSatellites.length);
// Get satellites with good signal strength (>= 20 dB-Hz)
const goodSignalSats = getSatellitesWithGoodSignal(status.satellites, 20);
console.log('Satellites with good signal:', goodSignalSats.length);
// Get comprehensive statistics
const stats = getSatelliteStatistics(status.satellites);
console.log('Satellite statistics:', {
total: stats.total,
usedInFix: stats.usedInFix,
averageSignalStrength: stats.averageSignalStrength,
strongestSignal: stats.strongestSignal,
byConstellation: stats.byConstellation
});
// Access individual satellite details
status.satellites.forEach((satellite: SatelliteInfo) => {
console.log(`${satellite.constellationName} ${satellite.svid}:`, {
signalStrength: satellite.cn0DbHz,
elevation: satellite.elevation,
azimuth: satellite.azimuth,
usedInFix: satellite.usedInFix,
hasEphemeris: satellite.hasEphemeris
});
});
} catch (error) {
console.error('Error analyzing satellites:', error);
}
};
```
### Satellite Data Structure
Each satellite in the `satellites` array contains:
```typescript
interface SatelliteInfo {
svid: number; // Satellite Vehicle ID (PRN for GPS)
constellationType: number; // Constellation type constant
constellationName: string; // Human-readable constellation name
cn0DbHz?: number; // Signal strength in dB-Hz
elevation?: number; // Elevation angle in degrees
azimuth?: number; // Azimuth angle in degrees
hasEphemeris: boolean; // Has ephemeris data
hasAlmanac: boolean; // Has almanac data
usedInFix: boolean; // Used in position calculation
carrierFrequencyHz?: number; // Carrier frequency in Hz (API 26+)
}
```
### Helper Functions
- `getSatellitesByConstellation(satellites, constellationType)` - Filter satellites by constellation
- `getSatellitesUsedInFix(satellites)` - Get satellites used in position fix
- `getSatellitesWithGoodSignal(satellites, minCn0)` - Filter by signal strength
- `getSatelliteStatistics(satellites)` - Get comprehensive satellite statistics
### Enhanced Frequency Band Analysis
```typescript
import {
identifyFrequencyBand,
getFrequencyBandInfo,
FrequencyBandInfo,
CarrierFrequencies
} from 'react-native-gnss-status-checker';
const analyzeFrequencies = async () => {
try {
const status = await getGNSSStatus();
// Get detailed frequency band information
const frequencyBands = getFrequencyBandInfo(status.carrierFrequencies);
frequencyBands.forEach((bandInfo: FrequencyBandInfo) => {
console.log(`Frequency: ${bandInfo.frequency} MHz`);
console.log(`Constellation: ${bandInfo.constellation}`);
console.log(`Band: ${bandInfo.band}`);
console.log(`Dual-Frequency: ${bandInfo.isDualFrequency}`);
});
// Identify a specific frequency
const bandInfo = identifyFrequencyBand(1176.45); // GPS L5
console.log('1176.45 MHz is:', bandInfo);
// Output: { frequency: 1176.45, constellation: 'GPS', band: 'L5', isDualFrequency: true }
// Check for dual-frequency capability with enhanced detection
console.log('Dual-frequency supported:', status.isDualFrequencySupported);
// Now detects L2, L5, E5a, E5b, B2a, B3, E6, LEX, S-band, and GLONASS L2
} catch (error) {
console.error('Error analyzing frequencies:', error);
}
};
```
### Comprehensive Frequency Mapping
The library now includes comprehensive frequency mapping based on [Sean Barbeau's research](https://barbeau.medium.com/dual-frequency-gnss-on-android-devices-152b8826e1c):
```typescript
// GPS frequencies
CarrierFrequencies.GPS_L1 // 1575.42 MHz
CarrierFrequencies.GPS_L2 // 1227.6 MHz (dual-frequency)
CarrierFrequencies.GPS_L5 // 1176.45 MHz (dual-frequency)
// Galileo frequencies
CarrierFrequencies.GALILEO_E1 // 1575.42 MHz
CarrierFrequencies.GALILEO_E5a // 1176.45 MHz (dual-frequency)
CarrierFrequencies.GALILEO_E5b // 1207.14 MHz (dual-frequency)
// BeiDou frequencies
CarrierFrequencies.BEIDOU_B1 // 1561.098 MHz
CarrierFrequencies.BEIDOU_B2a // 1176.45 MHz (dual-frequency)
CarrierFrequencies.BEIDOU_B3 // 1268.52 MHz (dual-frequency)
// NavIC frequencies
CarrierFrequencies.NAVIC_L5 // 1176.45 MHz (dual-frequency)
CarrierFrequencies.NAVIC_S // 2492.028 MHz (dual-frequency)
// GLONASS frequencies (with ranges)
CarrierFrequencies.GLONASS_L1_MIN // 1598.0625 MHz
CarrierFrequencies.GLONASS_L1_MAX // 1605.375 MHz
CarrierFrequencies.GLONASS_L2_MIN // 1242.9375 MHz (dual-frequency)
CarrierFrequencies.GLONASS_L2_MAX // 1248.625 MHz (dual-frequency)
```
## 📖 API Reference
### Methods
#### `getGNSSStatus(): Promise<GnssStatusResult>`
Returns the current GNSS status information.
**Returns:** Promise that resolves to a `GnssStatusResult` object.
#### `startListening(): Promise<void>`
Starts listening for GNSS status updates and satellite measurements.
**Returns:** Promise that resolves when listening starts successfully.
#### `stopListening(): Promise<void>`
Stops listening for GNSS updates.
**Returns:** Promise that resolves when listening stops successfully.
### Types
#### `GnssStatusResult`
```typescript
interface GnssStatusResult {
isGNSSSupported: boolean; // Whether GNSS is supported and enabled
isDualFrequencySupported: boolean; // Whether dual-frequency (L5) is detected
isNavICSupported: boolean; // Whether NavIC (IRNSS) is supported
satellitesVisible: number; // Number of visible satellites
satellitesUsedInFix: number; // Number of satellites used in position fix
averageSignalToNoiseRatio: number; // Average signal-to-noise ratio
supportedConstellations: string[]; // Array of constellation names
carrierFrequencies: number[]; // Array of detected frequencies (MHz)
satellites: SatelliteInfo[]; // Array of satellite information
}
```
#### Constants
```typescript
// Constellation types
export const GnssConstellations = {
UNKNOWN: 0,
GPS: 1,
SBAS: 2,
GLONASS: 3,
QZSS: 4,
BEIDOU: 5,
GALILEO: 6,
IRNSS: 7, // NavIC
} as const;
// Carrier frequencies (MHz)
export const CarrierFrequencies = {
GPS_L1: 1575.42,
GPS_L5: 1176.45,
GLONASS_L1: 1602.0,
GALILEO_E1: 1575.42,
GALILEO_E5a: 1176.45,
BEIDOU_B1: 1561.098,
BEIDOU_B2a: 1176.45,
NAVIC_L5: 1176.45,
} as const;
```
### Events
The module emits the following events via `DeviceEventEmitter`:
- `onSatelliteStatusChanged`: Satellite status updates
- `onMeasurementsChanged`: Carrier frequency measurements updates
- `onGnssStarted`: GNSS monitoring started
- `onGnssStopped`: GNSS monitoring stopped
- `onMeasurementStatusChanged`: Measurement system status changed
## 🔧 Troubleshooting
### Common Issues
1. **"Location permission is required" error**
- Ensure you've added location permissions to `AndroidManifest.xml`
- Request runtime permissions before calling GNSS methods
2. **"The package doesn't seem to be linked" error**
- Try `npx react-native clean` and rebuild
- Verify auto-linking configuration in `react-native.config.js`
- Check manual linking steps if auto-linking fails
3. **No satellite data or measurements**
- Ensure device has clear sky view
- GNSS measurements require API 24+ (Android 7.0)
- Carrier frequency detection requires API 26+ (Android 8.0)
4. **NavIC not detected**
- NavIC is primarily available in India and surrounding regions
- Requires compatible GNSS chipset
- May take time to acquire NavIC satellites
### Compilation Issues
#### **JVM Target Compatibility**
If you encounter JVM target mismatch errors:
```
FAILURE: Build failed with an exception.
* What went wrong:
Execution failed for task ':react-native-gnss-status-checker:compileDebugKotlin'.
> 'compileDebugJavaWithJavac' task (current target is 11) and 'compileDebugKotlin' task (current target is 17) jvm target compatibility should be set to the same Java version.
```
**Solution:** Ensure your project's `android/build.gradle` has matching JVM targets:
```gradle
android {
compileOptions {
sourceCompatibility JavaVersion.VERSION_11
targetCompatibility JavaVersion.VERSION_11
}
kotlinOptions {
jvmTarget = "11"
}
}
```
#### **API Level Errors**
If you encounter missing method errors like `hasCn0DbHz()`:
```
error: cannot find symbol method hasCn0DbHz(int)
```
**Solution:** The library handles this automatically with API level checks. Ensure your `compileSdkVersion` is 33 or higher:
```gradle
android {
compileSdkVersion 33
defaultConfig {
minSdkVersion 21 // Minimum supported
targetSdkVersion 33
}
}
```
#### **Kotlin Version Conflicts**
If you encounter Kotlin version conflicts:
**Solution:** Add to your project's `android/build.gradle`:
```gradle
buildscript {
ext.kotlin_version = '1.7.10'
dependencies {
classpath "org.jetbrains.kotlin:kotlin-gradle-plugin:$kotlin_version"
}
}
```
### Testing
Test the module on a physical Android device with:
- Clear outdoor environment
- API Level 24+ (preferably 26+ for full features)
- GNSS-capable hardware
- Location services enabled
### Debug Information
You can check your device's capabilities at runtime:
```typescript
import { getGNSSStatus } from 'react-native-gnss-status-checker';
const debugInfo = async () => {
try {
const status = await getGNSSStatus();
console.log('=== GNSS Debug Info ===');
console.log('API Level:', status.apiLevel);
console.log('Supports C/N0:', status.supportsCn0);
console.log('Supports Carrier Freq:', status.supportsCarrierFreq);
console.log('GNSS Supported:', status.isGNSSSupported);
console.log('Satellites Visible:', status.satellitesVisible);
console.log('Dual-Frequency:', status.isDualFrequencySupported);
console.log('NavIC Supported:', status.isNavICSupported);
} catch (error) {
console.error('GNSS Error:', error);
}
};
```
## 📊 Performance & Compatibility
### Platform Support
| Platform | Support | Min Version | Notes |
|----------|---------|-------------|--------|
| 🤖 Android | ✅ Full | API 24 (7.0) | Complete GNSS support |
| 📱 iOS | ❌ Coming Soon | - | Planned for future release |
| 🖥️ Desktop | ❌ N/A | - | Not applicable |
### Performance Metrics
- ⚡ **Satellite Update Rate**: Up to 1Hz
- 🎯 **Accuracy**: Sub-meter with dual-frequency
- 🔋 **Battery Impact**: Minimal (uses system GNSS)
- 📶 **Signal Sensitivity**: -160 dBm typical
## 🌐 Community
Join our community for support, discussions, and updates:
- 💬 [GitHub Discussions](https://github.com/vijayanandof/react-native-gnss-status-checker/discussions) - Ask questions & share ideas
- 🐛 [Issues](https://github.com/vijayanandof/react-native-gnss-status-checker/issues) - Report bugs & request features
- 📧 [Email](mailto:vijayanand@example.com) - Direct contact for business inquiries
### Show Your Support
- ⭐ Star this repository
- 🍴 Fork and contribute
- 📢 Share with the community
- ☕ [Buy me a coffee](https://www.buymeacoffee.com/vijayanand)
## 🤝 Contributing
Contributions are welcome! Please read the contributing guidelines and submit pull requests to the GitHub repository.
## 📄 License
MIT License - see LICENSE file for details.
## 📅 Changelog
### 1.0.0
- Initial release
- Android GNSS status checking
- Dual-frequency GPS detection
- NavIC support detection
- Real-time satellite monitoring
- TypeScript support
