# Computer Graphics in JS (Canvas, CPU-Based)
## Demo GIFs

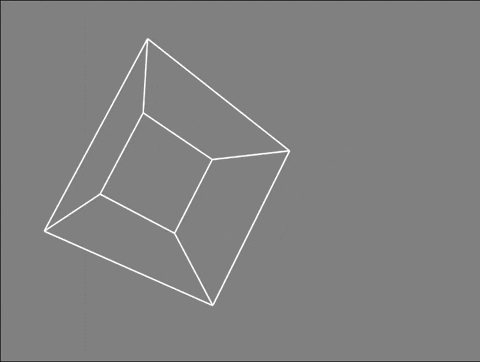

### 1) 3D Box: wireframe rotation with simple projection
- Shows live 2D transformations on polygons/rectangles using a simple animation loop.
- The center-compensation keeps objects rotating/scaling around their centroid.

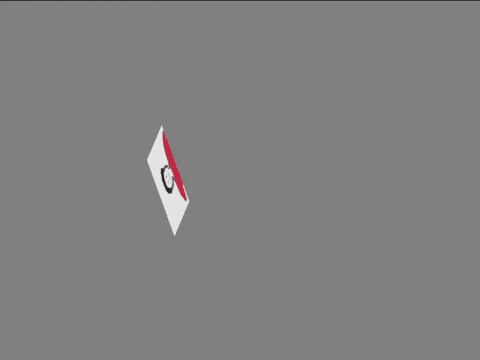

### 2) ImageData: per-pixel rendering as a vector and transformation
- The image is drawn pixel-by-pixel via `ImageData` and moved with a simple translate.
- Indexing uses `base = (y * width + x) * 4` to access RGBA channels correctly.

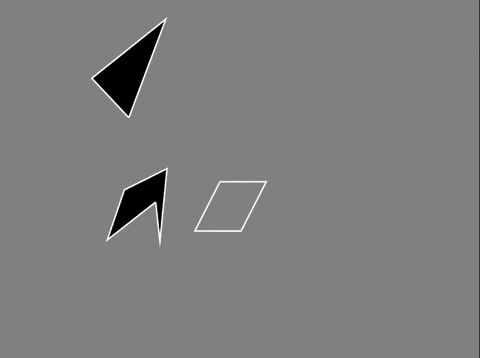

### 3) 2D Transforms: rotate, scale, shear
- A minimal 3D-to-2D pipeline renders a rotating cube in wireframe.
- Mouse-driven rotation simulates a camera-like experience.
> A playground to learn and implement core computer graphics techniques in JavaScript on the CPU, step by step.
This project aims to demonstrate matrices, vectors, transformations (translate/rotate/scale/shear), a simple 3D → 2D projection, and pixel-level operations (ImageData) with an approachable, experiment-friendly setup. Everything intentionally runs on the CPU; the goal is learning rather than performance.
## Contents & Architecture
- 2D module (`shapes/shapes2d.js`)
- Types: `Point`, `Pixel`
- `Transform` base: `translate`, `rotate`, `scale`, `shearX/Y/XY` (with center compensation)
- `Polygon`, `Rectangle`, `Triangle` (Triangle = Polygon[3])
- `ImageShape`: builds pixels from `ImageData` and renders 1×1 `fillRect`s (RGBA)
- 3D module (`shapes/shapes3d.js`)
- `Transform3D` and `Box` (wireframe cube)
- A simple perspective approach and 2D projection (minimal teaching pipeline)
- Canvas bootstrap (`canvas/canvas.js`)
- Returns `{ canvas, ctx, dpr, clearCanvas, resize }` and also sets `window.__canvas__`, `window.__ctx__` for convenience
- Vector/Matrix helpers (`VectorJS/vector.js`)
- `dot` (matrix multiplication), `normalize`, 2D rotation helpers
## Installation
```bash
npm i
npm run dev
```
Vite is used only for development (devDependency). A production-ready `dist/` build or alternative bundlers can be added later.
## Quick Start
The snippet below adds a rectangle and a polygon to the scene and applies basic transforms:
```javascript
import { initCanvas, Rectangle, Polygon } from "computer-graphics";
const { clearCanvas } = initCanvas("canvas1", window.innerWidth, window.innerHeight);
const rect = new Rectangle(100, 100, 120, 80);
const poly = new Polygon([300, 300], [360, 220], [420, 320], [340, 360]);
function animate() {
clearCanvas();
rect.rotate(1);
poly.shearX(Math.sin(0.01));
rect.draw();
poly.draw(true);
requestAnimationFrame(animate);
}
animate();
```
## Working with ImageData (Pixel Level)
- Draw the image onto the canvas, then grab the pixel buffer with `getImageData`.
- Correct indexing: `base = (y * width + x) * 4` → iterate `[r,g,b,a]` in order.
- `ImageShape` converts pixels into `Pixel` objects and paints them with 1×1 `fillRect`s.
```javascript
import { initCanvas, ImageShape } from "computer-graphics";
const { ctx } = initCanvas("canvas1", window.innerWidth, window.innerHeight);
const image = new Image();
image.src = "./assets/img.jpg";
image.onload = () => {
const w = image.naturalWidth, h = image.naturalHeight;
ctx.drawImage(image, 0, 0, w, h);
const { data } = ctx.getImageData(0, 0, w, h);
const img = new ImageShape(0, 0, data, w, h);
img.translate(200, 200);
img.rotate(37);
img.draw();
};
```
Note: If you want to use alpha in the 0–1 range, divide by 255 (`a/255`).
## 3D → 2D Projection (Educational)
- A `Box` is created in 3D space and projected to 2D before drawing.
- Rotations (`rotateX/Y/Z`) operate directly on 3D vertices, around the shape’s center.
- Camera model/focal length and related parameters can be extended later.
```javascript
import { initCanvas, Box } from "computer-graphics";
const { clearCanvas } = initCanvas("canvas1", window.innerWidth, window.innerHeight);
const box = new Box([500, 500, 1.5], 500);
function animate() {
clearCanvas();
box.rotateY(1);
box.draw();
requestAnimationFrame(animate);
}
animate();
```
## Design Choices & Learning Notes
- As long as transforms are affine, a shape’s centroid moves linearly; center handling matters.
- For GUI slider inputs, prefer “absolute” semantics (e.g., scale relative to the original, not cumulatively per frame).
- If canvas CSS size differs from its real resolution, you might see blur; consider `devicePixelRatio`.
- We return `ctx` and also expose a global for convenience; prefer passing `ctx` explicitly for encapsulation/testing.
## Roadmap
- [ ] Camera parameters (orthographic/perspective, `f`, near/far, view matrix)
- [ ] Absolute T·R·S model matrix per frame (reduce cumulative errors)
- [ ] Triangle rasterization, barycentric coordinates, z-buffer (depth test)
- [ ] Basic lighting (Lambert/Phong) — CPU-based
- [ ] OffscreenCanvas / Worker experiment for pixel rendering
- [ ] Production package (ESM/CJS) and a minimal demo page
## Run / Development
```bash
npm run dev # development server
# npm run build # production build (planned)
```
## Contributing
- Feel free to open issues or PRs for bugs and improvements.
- Since the goal is learning, small, focused PRs with explanatory commit messages are appreciated.
---
This repository is meant to be a practical toolbox for “Computer Graphics 101”. Code and comments are intentionally simple to maximize learnability and experimentation. Have fun!
