barcode4nodejs
Version:
Node.js bindings to Dynamsoft Barcode Reader C/C++ SDK.
192 lines (152 loc) • 6.35 kB
Markdown
# Node.js Barcode & QR Code SDK
The Node.js barcode QR code SDK is implemented by wrapping [Dynamsoft Barcode Reader C++ SDK](https://www.dynamsoft.com/barcode-reader/overview/). It helps developers to build Node.js barcode and QR code scanning applications for **Windows**, **Linux**, **macOS**, **Raspberry Pi** and **Jetson Nano**.
## License Key for SDK
[](https://www.dynamsoft.com/customer/license/trialLicense/?product=dcv&package=cross-platform)
## Pre-requisites
- Platform-specific C/C++ compiler
- node-gyp
```
npm i node-gyp -g
npm i node-addon-api -g
```
## Supported Platforms
- **Windows**
- **Linux**
- **macOS**
## Supported Barcode Symbologies
- Linear Barcodes (1D)
- Code 39 (including Code 39 Extended)
- Code 93
- Code 128
- Codabar
- Interleaved 2 of 5
- EAN-8
- EAN-13
- UPC-A
- UPC-E
- Industrial 2 of 5
- 2D Barcodes
- QR Code (including Micro QR Code and Model 1)
- Data Matrix
- PDF417 (including Micro PDF417)
- Aztec Code
- MaxiCode (mode 2-5)
- DotCode
- Patch Code
- GS1 Composite Code
- GS1 DataBar
- Omnidirectional,
- Truncated, Stacked, Stacked
- Omnidirectional, Limited,
- Expanded, Expanded Stacked
- Postal Codes
- USPS Intelligent Mail
- Postnet
- Planet
- Australian Post
- UK Royal Mail
## API
- `initLicense(license: string): void`
- `createInstance(): BarcodeReader`
- `getVersion(): string`
**Asynchronous Methods**
- `decodeFileAsync(filePath: string, format: formats, callback?: (err: Error | null, result?: BarcodeResult[]) => void, template?: string): void`
- `decodeFileAsync(filePath: string, format: formats, template?: string): Promise<BarcodeResult[]>`
- `decodeFileStreamAsync(stream: any, length: number, format: formats, callback?: (err: Error | null, result?: BarcodeResult[]) => void, template?: string): void`
- `decodeFileStreamAsync(stream: any, length: number, format: formats, template?: string): Promise<BarcodeResult[]>`
- `decodeBase64Async(base64String: string, format: formats, callback: (err: Error | null, result?: BarcodeResult[]) => void, template?: string): void`
- `decodeBase64Async(base64String: string, format: formats, template?: string): Promise<BarcodeResult[]>`
- `decodeYUYVAsync(data: any, width: number, height: number, format: formats, callback?: (err: Error | null, result?: BarcodeResult[]) => void, template?: string): void`
- `decodeYUYVAsync(data: any, width: number, height: number, format: formats, template?: string): Promise<BarcodeResult[]>`
- `decodeBufferAsync(buffer: any, width: number, height: number, stride: number, format: formats, callback?: (err: Error | null, result?: BarcodeResult[]) => void, template?: string): void`
- `decodeBufferAsync(buffer: any, width: number, height: number, stride: number, format: formats, template?: string): Promise<BarcodeResult[]>`
## Quick Usage
Replace `LICENSE-KEY` with your own license key.
```js
const dbr = require('barcode4nodejs');
dbr.initLicense("LICENSE-KEY")
dbr.decodeFileAsync("YOUR IMAGE FILE", dbr.formats.ALL, function(err, msg){
console.log(msg);
for (index in msg) {
result = msg[index];
console.log('Format: ' + result['format']);
console.log('Value : ' + result['value']);
console.log('x1: ' + result['x1']);
console.log('y1 : ' + result['y1']);
console.log('x2: ' + result['x2']);
console.log('y2 : ' + result['y2']);
console.log('x3: ' + result['x3']);
console.log('y3: ' + result['y3']);
console.log('x4: ' + result['x4']);
console.log('y4: ' + result['y4']);
console.log('page: ' + result['page']);
console.log('decoding time: ' + result['time']);
}
}, "");
// Or
(async function () {
try {
var result = await dbr.decodeFileAsync("YOUR IMAGE FILE", dbr.formats.ALL, "");
console.log(result);
} catch (error) {
console.log(error);
}
})();
```
## How to Customize and Build the Module
1. Get the source code:
```
git clone https://github.com/yushulx/nodejs-barcode.git
```
2. Download Dynamsoft C++ Barcode SDK. Copy header files to `src` folder and copy platform-specific shared libraries to `platforms` folder.
3. Edit `src/dbr.cc` and `index.js`.
4. Build the Node.js extension:
```bash
node-gyp configure
node-gyp build
# For macOS
install_name_tool -change @rpath/libDynamsoftCore.dylib @loader_path/libDynamsoftCore.dylib build/Release/dbr.node
install_name_tool -change @rpath/libDynamsoftLicense.dylib @loader_path/libDynamsoftLicense.dylib build/Release/dbr.node
install_name_tool -change @rpath/libDynamsoftCaptureVisionRouter.dylib @loader_path/libDynamsoftCaptureVisionRouter.dylib build/Release/dbr.node
install_name_tool -change @rpath/libDynamsoftUtility.dylib @loader_path/libDynamsoftUtility.dylib build/Release/dbr.node
install_name_tool -change @rpath/libDynamsoftImageProcessing.dylib @loader_path/libDynamsoftImageProcessing.dylib build/Release/libDynamsoftUtility.dylib
```
**For Visual Studio 2019 Community**
```
node-gyp configure --msbuild_path="C:\Program Files (x86)\Microsoft Visual Studio\2019\Community\MSBuild\Current\Bin\MSBuild.exe" --msvs_version=2017
node-gyp build
```
## Examples
- [Command Line](./examples/command-line/)
```
node test.js -f MultiPage.pdf
```
- [Web](./examples/web/)
```
npm install
node server.js
```
Open `http://localhost:2018/index.htm` in web browsers.
- [Desktop Electron](./examples/desktop-electron/)
```
cd src
node-gyp rebuild --target=0.36.7 --arch=x64 --dist-url=https://atom.io/download/atom-shell
cd examples/desktop-electron
npm install
npm start
```
- [Linux Camera](./examples/linux-camera/)
```
npm install v4l2camera
node camera_barcode_reader.js
```
- [RESTful Service](./examples/RESTful-service/)
```
npm install restify
node server.js
```
Open `https://< ip >:2018` to scan barcodes in web browsers.
- [Litecamera](./examples/litecamera/)

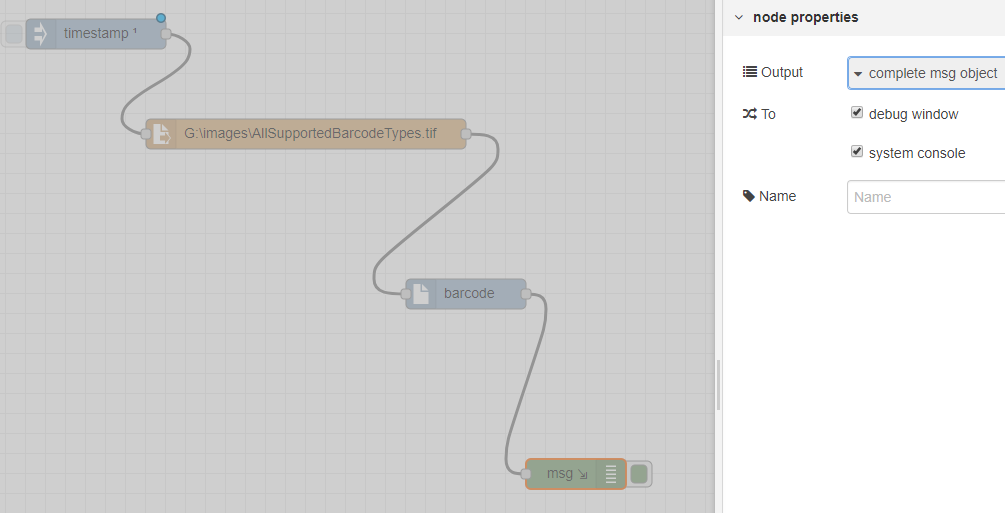

- [Node-RED](./examples/node-red/)
