# React Native Bottom Sheet 💖
[](https://expo.io/)
The smart 😎, tiny 📦, and flexible 🎗 bottom sheet your app craves 🚀
---
👉🏾
<a href="https://www.buymeacoffee.com/devvie" target="_blank"><img src="https://cdn.buymeacoffee.com/buttons/v2/default-yellow.png" alt="Buy Me A Coffee" style="height: 60px !important;width: 217px !important;" ></a>
👈🏾
---
#### Android & iOS Preview

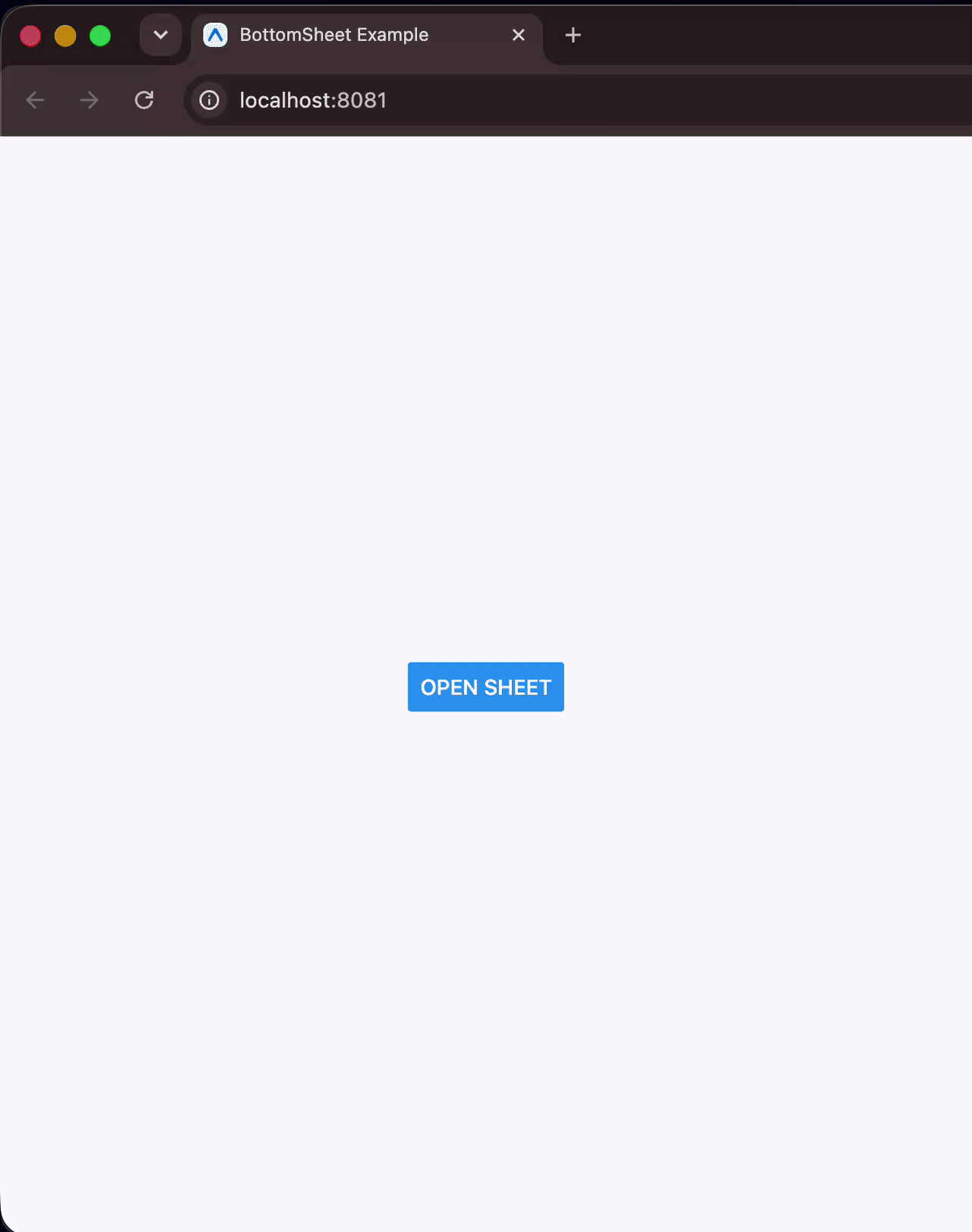

#### Web Preview
## 💻 Installation
```sh
npm install @devvie/bottom-sheet
# or
yarn add @devvie/bottom-sheet
```
## 🤔 Why this bottom sheet?
🚀 **Plug and play** — `npm install` and you're done. Zero third-party dependencies, no Babel plugins, no pod install. Built entirely on React Native's own APIs.
⌨️ **Keyboard intelligence** — The sheet auto-detects the keyboard mode (`adjustPan` / `adjustResize`), measures its own live position on screen, and animates to a safe height when a text input is focused — all without any configuration or wrapper components.
📦 **Tiny footprint** — ~4 KB minzipped. Extremely lightweight and fast, leaving virtually no impact on your bundle size.
🎯 **Snap points** — Define resting positions with a mix of `%` and `px` values. Snap points are automatically sorted in ascending order internally, meaning index `0` always represents the smallest/collapsed position. The sheet snaps to the nearest point on release with velocity-aware physics, and exposes `snapToIndex`, `expand`, and `collapse` for full programmatic control.
📟 **Live prop updates** — Dynamically change `height`, `snapPoints`, or `containerHeight` at any time and the sheet re-syncs its layout, clamps its active index, and fires callbacks automatically.
🌐 **Truly cross-platform** — iOS, Android, Web, and Expo, all from pure React Native primitives. No native modules required.
🎞 **3 animation types** — Choose between `slide`, `spring`, and `fade` out of the box, or supply your own custom easing function. Animation durations are fully configurable for both open and close transitions.
📜 **Nested scrolling** — Works with `FlatList`, `SectionList`, and `ScrollView` inside the sheet. Drag the handle to move the sheet; scroll the list to scroll its content — no gesture conflicts.
🎨 **Custom components** — Swap the drag handle or backdrop with your own animated components. Both receive the sheet's animated height value for interpolation, so you can build rich interactive handles and scrims.
✨ **Modal & non-modal** — Use as a full modal with backdrop mask, or as a lightweight inline sheet with elevation shadow. Supports custom backdrop components positioned above or behind the sheet.
✅ **TypeScript-first** — Fully typed props with compile-time safety. `height` and `snapPoints` are enforced as mutually exclusive at the type level.
## 📱 Basic Example
Opening and closing the bottom sheet is done imperatively. Pass a `ref` to the bottom sheet and call the `open()` or `close()` methods.
#### 1. Single height (default)
```tsx
import React, { useRef } from 'react';
import BottomSheet, { BottomSheetMethods } from '@devvie/bottom-sheet';
import { Button, Text, View } from 'react-native';
const App = () => {
const sheetRef = useRef<BottomSheetMethods>(null);
return (
<View style={{ flex: 1, justifyContent: 'center', alignItems: 'center' }}>
<Button title="Open Sheet" onPress={() => sheetRef.current?.open()} />
<BottomSheet ref={sheetRef} height={300}>
<Text>
The smart 😎, tiny 📦, and flexible 🎗 bottom sheet your app craves 🚀
</Text>
</BottomSheet>
</View>
);
};
export default App;
```
#### 2. With snap points (multi-height)
```tsx
import React, { useRef } from 'react';
import BottomSheet, { BottomSheetMethods } from '@devvie/bottom-sheet';
import { Button, Text, View } from 'react-native';
const App = () => {
const sheetRef = useRef<BottomSheetMethods>(null);
return (
<View style={{ flex: 1, justifyContent: 'center', alignItems: 'center' }}>
<Button title="Open Sheet" onPress={() => sheetRef.current?.open()} />
<BottomSheet
ref={sheetRef}
snapPoints={['30%', 450, '90%']}
index={0}
onSnap={(index) => console.log('snapped to', index)} // index 0..2, or -1 on close
>
<Text>Drag me between snap points 🎯</Text>
</BottomSheet>
</View>
);
};
export default App;
```
### ⚠ Warning
The bottom sheet component uses and handles pan gestures internally, so to avoid scroll/pan misbehavior with its container, **DO NOT** put it inside a container that supports panning e.g `ScrollView`. You can always put it just next to the `ScrollView` and use `React Fragment` or a `View` to wrap them and everything should be okay.
#### ❌ Don't do this
```jsx
<ScrollView>
<BottomSheet>...</BottomSheet>
</ScrollView>
```
#### ✅ Do this
```jsx
<>
<ScrollView>...</ScrollView>
<BottomSheet>...</BottomSheet>
</>
```
## 🛠 Props
The bottom sheet is highly configurable via props. All props works for both `Android` and `iOS` except those prefixed with `android_` and `ios_`, which works for only `Android` and `iOS` respectively.
| Property | Type | Default | Description | Required |
| --------------------------------- | --------------------------------------------------------------------------------------- | ---------------------- | ------------------------------------------------------------------------------------------------------------------------------------------------- | -------- |
| `android_backdropMaskRippleColor` | `string \| OpaqueColorValue` | | Color of the ripple effect when backdrop mask is pressed (**Android Only**). | No |
| `android_closeOnBackPress` | `boolean` | `true` | Determines whether the sheet will close when the device back button is pressed (**Android Only**). | No |
| `animationType` | `'slide' \| 'spring' \| 'fade' \| ANIMATIONS` | `'slide'` | Animation to use when opening and closing the bottom sheet. | No |
| `backdropMaskColor` | `string \| OpaqueColorValue` | `'#00000052'` | Color of the scrim or backdrop mask. | No |
| `children` | `ViewProps['children'] \| React.FunctionComponent<{_animatedHeight: Animated.Value}>` | `null` | Contents of the bottom sheet. | Yes |
| `closeDuration` | `number` | `500` | Duration for sheet closing animation. | No |
| `closeOnBackdropPress` | `boolean` | `true` | Determines whether the bottom sheet will close when the scrim or backdrop mask is pressed. | No |
| `closeOnDragDown` | `boolean` | `true` | Determines whether the bottom sheet will close when dragged down. | No |
| `containerHeight` | `ViewStyle['height']` | `DEVICE SCREEN HEIGHT` | Height of the bottom sheet's overall container. | No |
| `customBackdropComponent` | `React.FunctionComponent<{_animatedHeight: Animated.Value}>` | `null` | Custom component for sheet's scrim or backdrop mask. | No |
| `customBackdropPosition` | `"top" \| "behind"` | `'behind'` | Determines the position of the custom scrim or backdrop component. `'behind'` puts it behind the keyboard and `'top'`` puts it atop the keyboard. | No |
| `customDragHandleComponent` | `React.FC<{_animatedHeight: Animated.Value}>` | | Custom drag handle component to replace the default bottom sheet's drag handle. | No |
| `customEasingFunction` | `AnimationEasingFunction` | `ANIMATIONS.SLIDE` | Custom easing function for driving sheet's animation. | No |
| `disableBodyPanning` | `boolean` | `false` | Prevents the bottom sheet from being dragged/panned down on its body. | No |
| `disableDragHandlePanning` | `boolean` | `false` | Prevents the bottom sheet from being panned down by dragging its drag handle. | No |
| `dragHandleStyle` | `ViewStyle` | | Extra styles to apply to the drag handle. | No |
| `height` | `number \| string` | `'50%'` | Height of the bottom sheet when opened. Relative to `containerHeight` prop | No |
| `hideDragHandle` | `boolean` | `false` | When true, hides the sheet's drag handle. | No |
| `index` | `number` | `0` | Snap point index the sheet opens to (when `snapPoints` is set). `0` is the smallest point. Initial position only (not reactive). | No |
| `modal` | `boolean` | `true` | Determines whether the sheet is a modal. A modal sheet has a scrim or backdrop mask, while a standard (non-modal) sheet doesn't. | No |
| `onSnap` | `(index: number) => void` | | Called when the sheet settles on a snap point (drag or programmatic); `-1` on close. | No |
| `openDuration` | `number` | `500` | Duration for sheet opening animation. | No |
| `snapPoints` | `(number \| string)[]` | `undefined` | Resting positions, a mix of px numbers and `'%'` strings e.g. `['30%', 600]`. Takes precedence over `height`. Snap via drag or ref methods. | No |
| `style` | `Omit<ViewStyle, 'height' \| 'minHeight' \| 'maxHeight' \| 'transform:[{translateY}]'>` | | Extra styles to apply to the bottom sheet. | No |
### Ref methods
The sheet's `ref` exposes the following methods:
| Method | Description |
| -------------------- | --------------------------------------------------------------------------------------------- |
| `open()` | Open the bottom sheet (to the `index` prop if `snapPoints` is provided, otherwise `height`). |
| `close()` | Close the bottom sheet. |
| `snapToIndex(index)` | Animate to the snap point at `index` (clamped). `-1` closes; opens the sheet if it is closed. |
| `expand()` | Animate to the largest snap point. |
| `collapse()` | Animate to the smallest snap point. |
```tsx
sheetRef.current?.open(); // open sheet
sheetRef.current?.close(); // close sheet
sheetRef.current?.snapToIndex(2); // jump to the 3rd (largest) point
sheetRef.current?.expand(); // largest point
sheetRef.current?.collapse(); // smallest point
```
> When `snapPoints` is not provided these methods resolve to the single `height`, so they're always safe to call.
## Examples
Flexibility is a focus for this bottom sheet, these few examples shows certain behaviors of the bottom sheet and what can be achieved by tweaking its props.
### 1️⃣ Smart response to keyboard pop ups and orientation changes (default behavior)
| Android | iOS |
| :----------------------------------------------------------------------------------------: | :------------------------------------------------------------------------------------: |
|  |  |
### 2️⃣ Handles deeply nested list and scroll views interactions (default behavior)
| Android | iOS |
| :----------------------------------------------------------------------------------: | :----------------------------------------------------------------------------: |
|  |  |
### 3️⃣ Auto adjusts layout when `height` and `containerHeight` props change (default behavior)
<p float="left">
<img src="https://i.ibb.co/3YGXHht/Detect-Height.gif" width="300" />
</p>
### 4️⃣ Extend sheet height when its content is scrolled
<p float="left">
<img src="https://i.ibb.co/9W5J2t5/Extend-on-scroll.gif" width="300" />
</p>
### 5️⃣ Use as `SnackBar`
<p float="left">
<img src="https://i.ibb.co/LkMJ255/Snack-Bar.gif" width="300" />
</p>
### 6️⃣ Custom Drag Handle Animation Interpolation
<p float="left">
<img src="https://i.ibb.co/0yDPQ0W/Drag-Handle-Animation.gif" width="300" />
</p>
### 7️⃣ Custom Scrim/Backdrop Mask
<p float="left">
<img src="https://i.ibb.co/h9XqBJC/Custom-Scrim.gif" width="300" />
</p>
#### _More examples coming soon..._
## Contributing
See the [contributing guide](CONTRIBUTING.md) to learn how to contribute to the repository and the development workflow.
## License
MIT
see [LICENSE](LICENSE.md)
---
